Mini Monocrystalline Solar Charger 6V – CN3065 Phone Power Panel

$13.99 USD

~~$20.99 USD~~ $13.99 USD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: Heltec Automation

Certification: None

Choice: yes

High-concerned chemical: None

Origin: Mainland China

semi_Choice: yes

If you have any questions, you can contact the store customer service staff as soon as possible

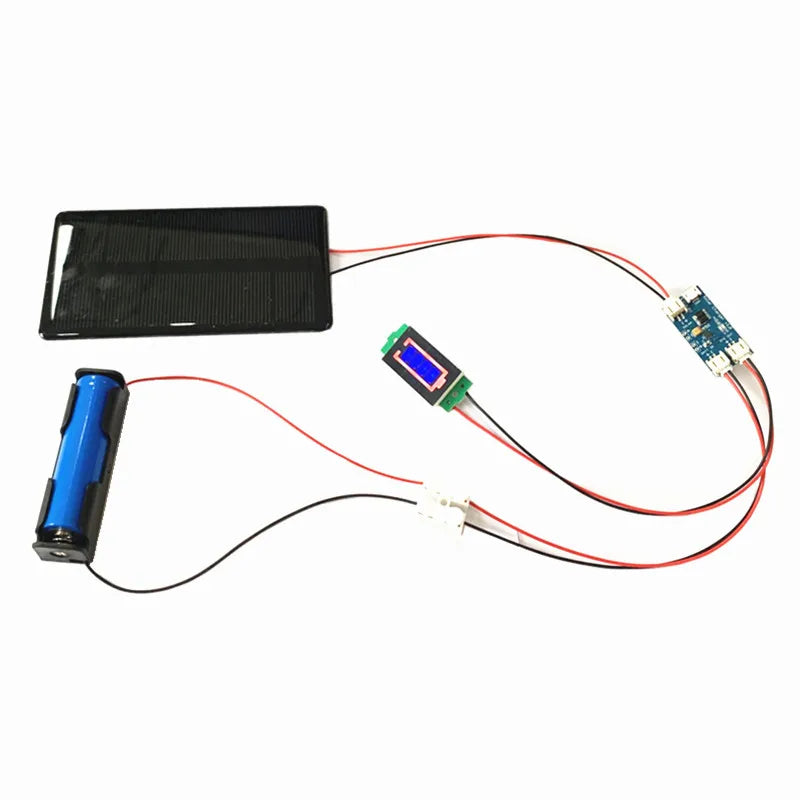

Connection example diagram

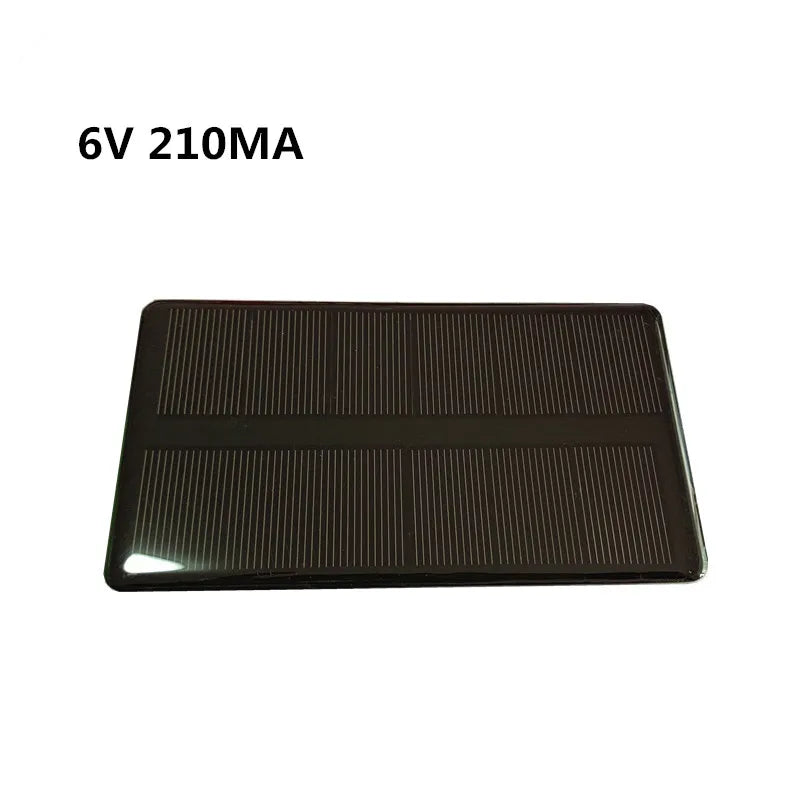

Feature:

Voltage:6V

Current: 210MA

Process: Epoxy

Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane

Size: 133*73MM

Package include:

1*Solar panel

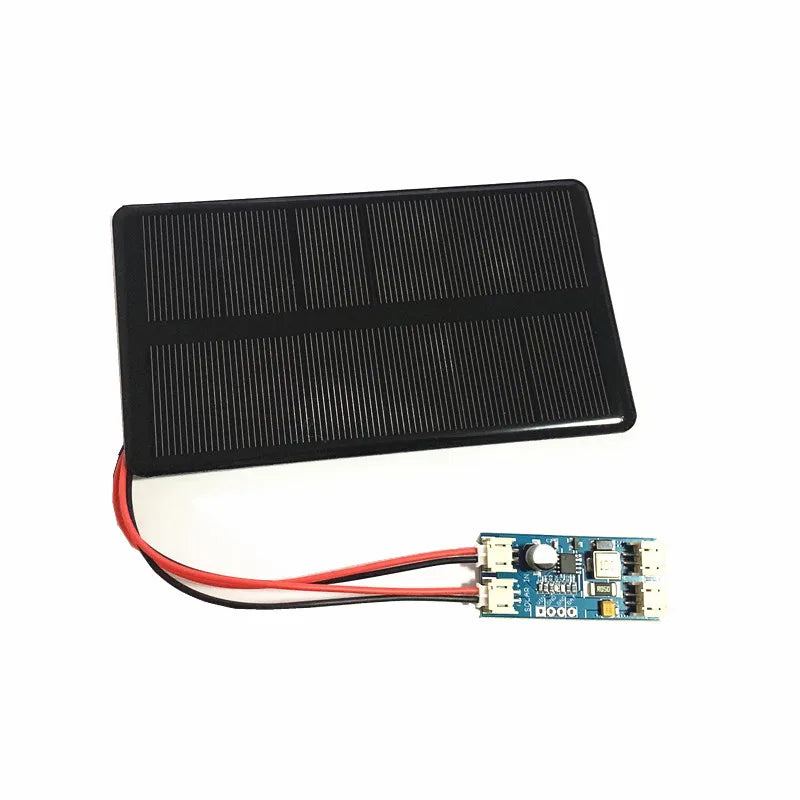

Solar charger

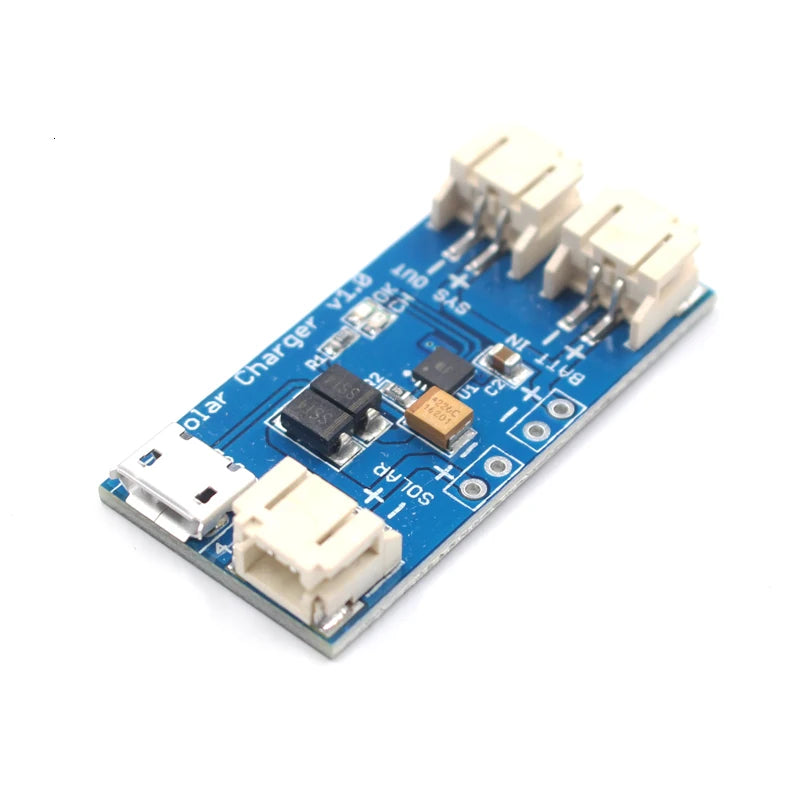

This is a supper mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip.

This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It's recommended that batteries not be charged at greater than their capacity rating.

Features:

Solar panel input: 4.4-6V

Max charge current: 500Ma

Interface: 2-pin JST connectors(or PH2.0)

Short circuit protection

Continuous Charge Current Up to 500mA

Battery status indication ( Red : Charging , Green: Charged )

Micro-USB Connector

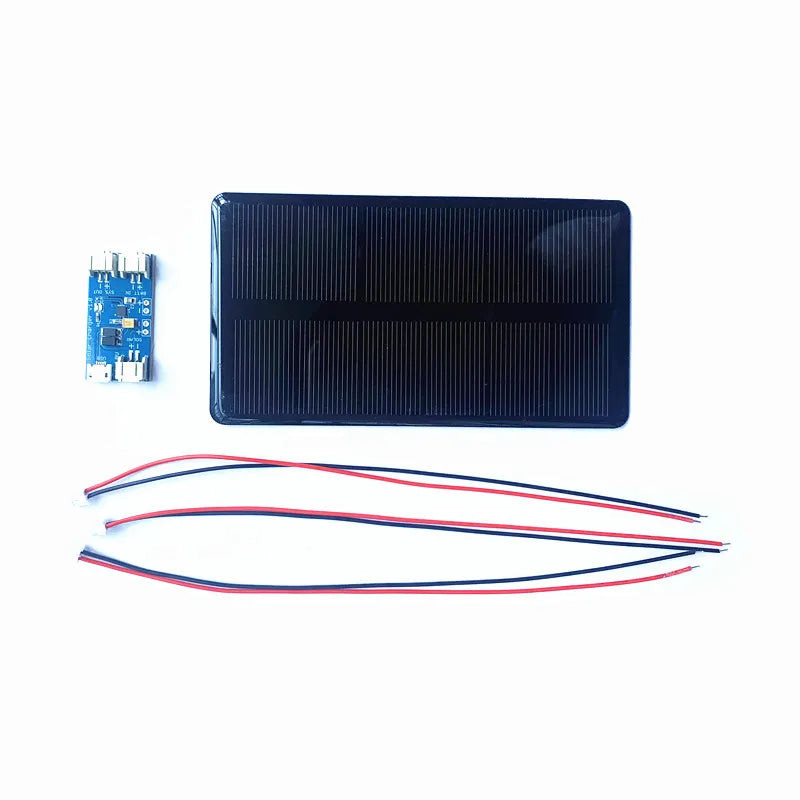

Package A Include

1* Solar Panle

1* Solar Charger

3*Cable

1S Power display

How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube displays the real-time battery power

Display battery parameters:

(Remarks: N is the number of battery cells) (The following data is a reference value, there will be an error range of about 2%, do not shoot if high accuracy is required)

The battery voltage is greater than N × 3.3V, with 1 grid lit
The battery voltage is greater than N × 3.5V, with 2 grids on

The battery voltage is greater than N × 3.7V, with 3 grids on

The battery voltage is greater than N × 3.9V, with 4 grids on

The battery voltage is less than N × 3.3V, and the four-segment display is all off, indicating that the battery is below 3.3V, and it is time to charge the battery.
